About this supplier

GEW (EC) Limited designs and manufactures Arc and UV LED curing systems for printing, coating and converting applications. The company is the leading manufacturer of UV systems for label and narrow web printing and is experiencing a growing global presence in sheetfed and web offset for commercial printing and packaging. GEW’s UV systems are available for all new machinery, and can be retrofitted to any active press, allowing printers to breathe new life into older printing equipment. GEW has a world-class production facility at its UK headquarters, subsidiaries in the USA & Germany, and an extensive list of worldwide distributors.

GEW specialises in the design and installation of UV LED systems, having introduced its latest UV LED product, AeroLED, in early 2022. Representing the next generation for UV LED curing, AeroLED eliminates the need for a chiller by air-cooling from a single remote fan to bring UV LED within affordable reach for all. LeoLED, released in 2019, is GEW’s water-cooled solution, delivering maximum power and UV dose for more demanding applications. AeroLED and LeoLED are both compatible with GEW’s renowned ArcLED hybrid system.

AeroLED2

AeroLED2 is a next generation, higher power UV LED system for full cure, printing, coating and converting applications up to 70cm wide; AeroLED2 offers a 30% increase in electrical power (70W / cm), a 30% increase in UV dose (170mJ / cm2) and a 40% increase in UV irradiance (26W / cm2) compared to its predecessor, AeroLED.

Following its predecessor, in an AeroLED2 system air is extracted by a single centralised fan sited away from the press. There is no need for integrated fans or electronics in the individual lampheads. AeroLED2 features the same LED chassis and core components as GEW’s LeoLED2 lamphead. As with LeoLED2, the lamphead has tough watertight seals to protect the LED modules from ingress and to make cleaning easy and safe.

AeroLED2’s efficient optical design enables the lowest energy usage of all GEW products. This delivers energy savings of up to 55% when compared to a conventional UV arc system.

A further advantage of LED is its predictability and stability of UV output in the curing process. AeroLED2 delivers improved process control by ensuring stable UV output year after year, and eliminates the uncertainty of conventional UV lamps, reflectors and mechanisms to ensure consistent production quality.

PRODUCT DETAILS CONTACT

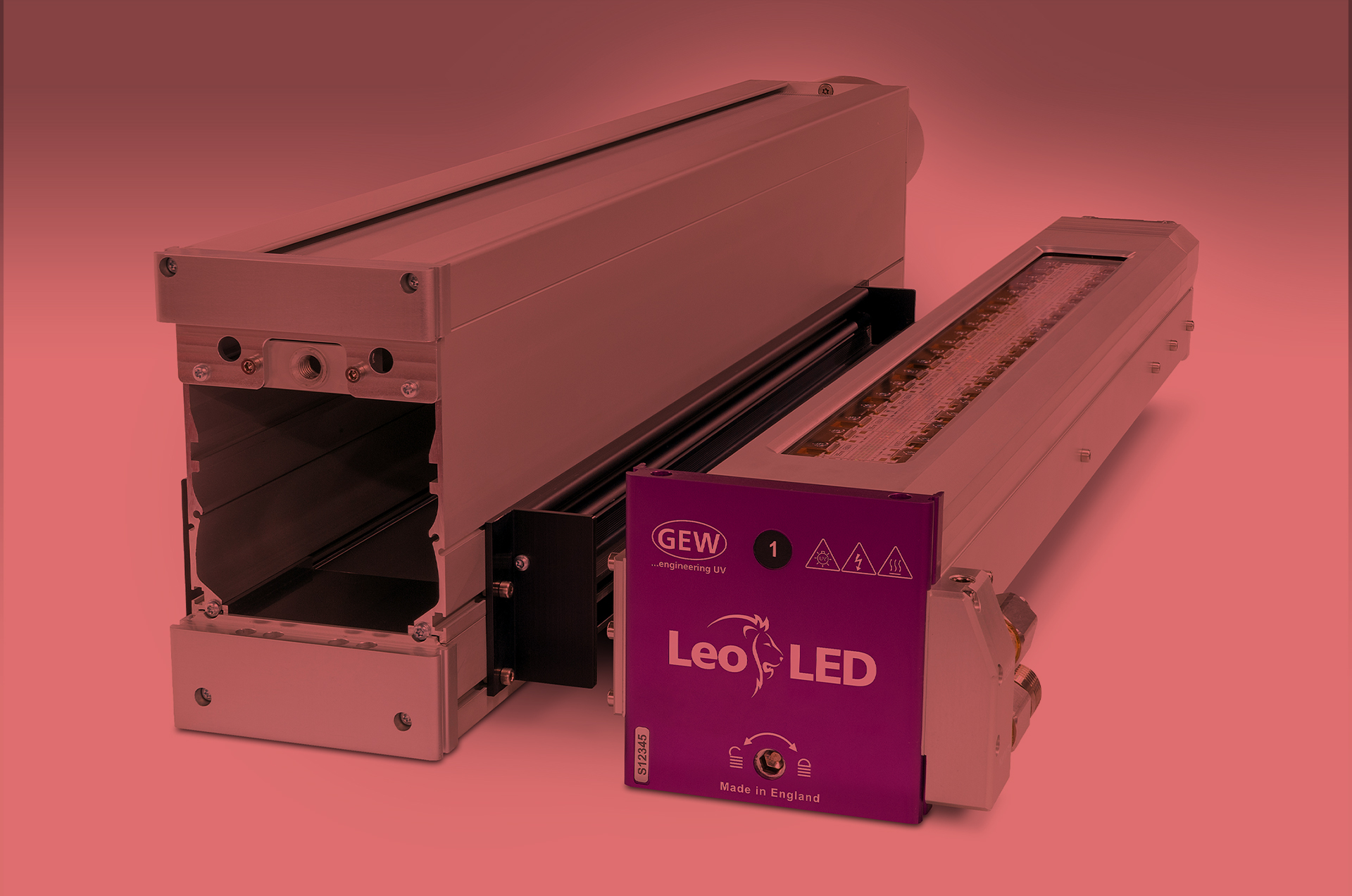

LeoLED2

LeoLED2 takes LED performance to new heights over GEW’s already highly-acclaimed, water-cooled LeoLED system. Offering a 55% increase in electrical power (140W / cm), a 50% increase in UV dose (300mJ / cm²) and a 45% increase in UV irradiance (44W / cm²) compared to its predecessor, LeoLED2 is GEW’s next generation UV LED curing system that guarantees the best performance on the market for the most challenging curing applications.

As with the generation 1 model, LeoLED2 is available in both a cassette version and a compact version, depending on the requirements of the customer, their equipment and their application. Both models are designed to interchange with every current arc lamp model in GEW’s range. This patented ArcLED technology gives ultimate flexibility on press, no matter the application.

Like all our UV products, LeoLED2 is powered by GEW’s RHINO power supply for ultimate reliability and controlled by RHINO Control which comes as standard with IoT remote monitoring. This allows our customers the flexibility to go ArcLED without having to invest in a whole new, independent system.

LeoLED2 also comes in two power level options, offering ultimate customisability to customers, depending on their application and energy saving needs, whilst providing faster printing speeds alongside GEW’s renowned process reliability.
